NSI8220 - High Reliability Dual-Channel Digital Isolators

NSI8220 Description

NSI822x High Reliability Dual-Channel Digital Isolators Datasheet (EN) 1.4 Product Overview The NSi822x devices are high reliability dual-channel dig.

NSI8220 Features

* Up to 5000Vrms Insulation voltage
* Date rate: DC to 150Mbps
* Power supply voltage: 2.5V to 5.5V
* All devices are AEC-Q100 qualified
* High CMTI: 250kV/us
* Chip level ESD: HBM: ±8kV
* Robust EMC Reinforced Dual-Channel Digital Isolators for SOW8 wide body and SOW16 w

NSI8220 Applications

* Industrial automation system
* Isolated SPI, RS232, RS485
* General-purpose multichannel isolation
* Motor control Device Information Part Number NSI822xNx-DSPR NSI822xWx-DSWVR NSI822xWx-DSWR NSI822xWx-DSWWR Package SOP8 SOW8 SOW16 SOWW16 Body Size 4.90mm × 3.90mm 5.85mm × 7.50

📥 Download Datasheet

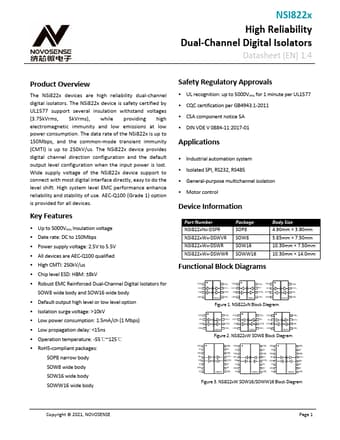

Preview of NSI8220 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NSI8220
Manufacturer
NOVOSENSE
File Size
1.49 MB
Datasheet
NSI8220-NOVOSENSE.pdf
Description
High Reliability Dual-Channel Digital Isolators
