NSI8221 High Reliability Dual-Channel Digital Isolators

NSI822x High Reliability Dual-Channel Digital Isolators Datasheet (EN) 1.4 Product Overview The NSi822x devices are high reliability dual-channel digital isolators. The NSi822x device is safety certified by UL1577 support several insulation withstand voltages (3.75kVrms, 5kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSi822x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 250kV/us. The NSi822x devi.

NSI8221 Features

* Up to 5000Vrms Insulation voltage

* Date rate: DC to 150Mbps

* Power supply voltage: 2.5V to 5.5V

* All devices are AEC-Q100 qualified

* High CMTI: 250kV/us

* Chip level ESD: HBM: ±8kV

* Robust EMC Reinforced Dual-Channel Digital Isolators for SOW8 wide body and SOW16 w

NSI8221 Datasheet (1.49 MB)

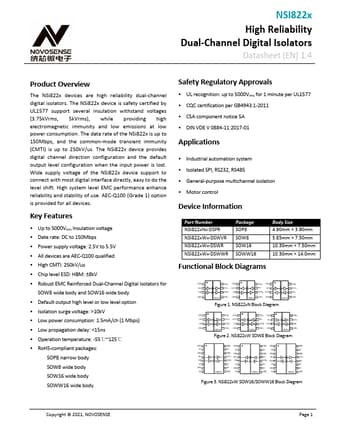

NSI8221 Datasheet Preview — Preview of NSI8221 PDF

Datasheet Details

Part number:

NSI8221

Manufacturer:

NOVOSENSE

File Size:

1.49 MB

Description:

High reliability dual-channel digital isolators.
