NSi8221C, NSi8220C - Dual-Channel Digital Isolators

NSi8221C Description

NSi822xC High Reliability Dual-Channel Digital Isolators Datasheet (EN) 1.3 Product Overview The NSi822xC devices are high reliability dual-channel d.
16 6.

NSi8221C Features

* Up to 5000Vrms Insulation voltage
* Data rate: DC to 150Mbps
* Power supply voltage: 2.5V to 5.5V
* High CMTI: 250kV/us
* Chip level ESD: HBM: ±8kV
* Robust EMC Reinforced Dual-Channel Digital Isolators for SOW8 wide body and SOW16 wide body
* Default output high level

NSi8221C Applications

* Industrial automation system
* Isolated SPI, RS232, RS485
* General-purpose multichannel isolation
* Motor control Device Information Part Number NSi822xCx-DSPR NSi822xCx-DSWVR NSi822xCx-DSWR Package SOP8 SOW8 SOW16 Body Size 4.90mm × 3.90mm 5.85mm × 7.50mm 10.30mm × 7.50mm Fu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NSi8221C, NSi8220C. Please refer to the document for exact specifications by model.

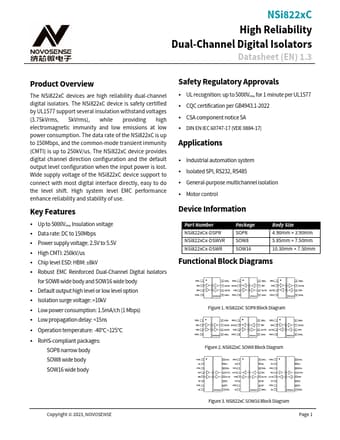

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NSi8221C, NSi8220C
Manufacturer
NOVOSENSE
File Size
3.31 MB
Datasheet
NSi8220C-NOVOSENSE.pdf
Description
Dual-Channel Digital Isolators
Note
This datasheet PDF includes multiple part numbers: NSi8221C, NSi8220C.
Please refer to the document for exact specifications by model.
