NSi8241-Q1, NSi8240-Q1 - High Reliability Reinforced Quad-Channel Digital Isolators

NSi8241-Q1 Description

NSi824x-Q1 High Reliability Reinforced Quad-Channel Digital Isolators Datasheet (EN) 1.2 Product Overview The NSi824x devices are high reliability qu.
13 6.

NSi8241-Q1 Features

* Up to 5000Vrms Insulation voltage
* Date rate: DC to 150Mbps
* Power supply voltage: 2.5V to 5.5V
* AEC-Q100 Grade 1 available for all devices
* High CMTI: 250kV/us
* Chip level ESD: HBM: ±8kV
* Robust Electromagnetic Compatibility (EMC)
* System-Level ESD, EFT,

NSi8241-Q1 Applications

* Industrial automation system
* Isolated SPI, RS232, RS485
* General-purpose multichannel isolation
* Motor control Device Information Part Number NSi824xW-Q1SWR NSi824xS-Q1SSR NSi824xW-Q1SWWR Package SOP16(300mil) SSOP16 SOP16(600mil) Body Size 10.30mm × 7.50mm 4.90mm × 3.90mm

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NSi8241-Q1, NSi8240-Q1. Please refer to the document for exact specifications by model.

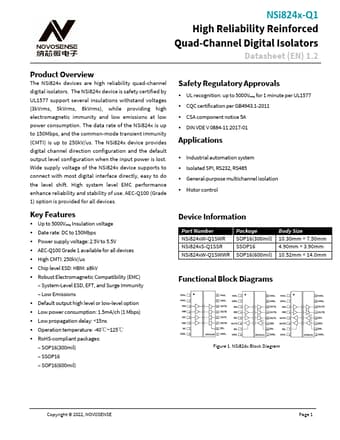

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NSi8241-Q1, NSi8240-Q1
Manufacturer
NOVOSENSE
File Size
2.64 MB
Datasheet
NSi8240-Q1-NOVOSENSE.pdf
Description
High Reliability Reinforced Quad-Channel Digital Isolators
Note
This datasheet PDF includes multiple part numbers: NSi8241-Q1, NSi8240-Q1.
Please refer to the document for exact specifications by model.
