NTE952 Integrated Circuit Precision 2.5V Shunt

The NTE952 integrated circuit is a precision 2.5V shunt regulator diode. This monolithic IC voltage reference operates as a low temperature coefficient 2.5V zener with 0.2Ω dynamic impedance. This device is rated for operation over a 0° to +70°C temperature range and is available in a TO *92.

NTE952 Features

* Low Temperature Coefficient

* Wide Operating Current of 300µA to 10mA

* 0.2Ω Dynamic Impedance

* ±1% Initial Tolerance Available

* Guaranteed Temperature Stability

* Easily Trimmed for Minimum Temperature Drift

* Fast Turn

* On Absolut

NTE952_NTEElectronics.pdf

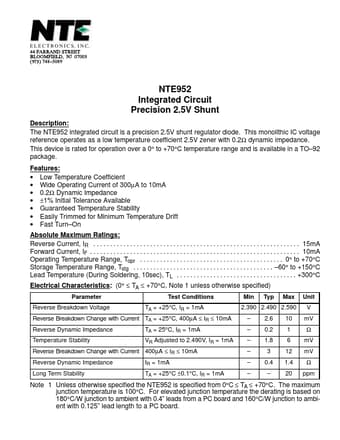

NTE952 Datasheet Preview — Preview of NTE952 PDF

Datasheet Details

Part number:

NTE952

Manufacturer:

NTE Electronics

File Size:

20.08 KB

Description:

Integrated circuit precision 2.5v shunt.
