NTE955MC, Integrated Circuit CMOS Timing Circuit

NTE955MC Integrated Circuit CMOS Timing Circuit .
The NTE955MC is a monolithic timing circuit in an 8. Lead DIP type package fabricated using CMOS process.

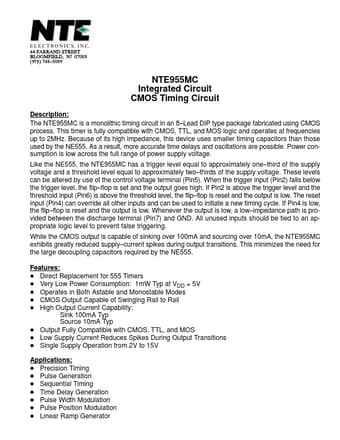

datasheet Preview Page 1 from Datasheet4u.com

NTE955MC_NTEElectronics.pdf

NTE955MC Datasheet Preview — Preview of NTE955MC PDF

Datasheet Details

Part number:

NTE955MC

Manufacturer:

NTE Electronics

File Size:

43.04 KB

Description:

Integrated Circuit CMOS Timing Circuit

Features

* D Direct Replacement for 555 Timers D Very Low Power Consumption: 1mW Typ at VDD = 5V D Operates in Both Astable and Monostable Modes D CMOS Output Capable of Swinging Rail to Rail D High Output Current Capability: Sink 100mA Typ Source 10mA Typ D Output Fully Compatible with CMOS, TTL, and MOS D L

Applications

* D Precision Timing D Pulse Generation D Sequential Timing D Time Delay Generation D Pulse Width Modulation D Pulse Position Modulation D Linear Ramp Generator Absolute Maximum Ratings: (TA = +25°C, Note 1 unless otherwise specified) Power Supply Voltage (Note 2), VDD
