NTE955S Datasheet - NTE Electronics

NTE955S Integrated Circuit Timing Circuit

The NTE955 series timing circuit is a highly stable controller capable of producing accurate time delays, or oscillation. Additional terminals are provided for triggering or resetting if desired. In time delay mode of operation, the time is precisely controlled by one external resistor and capacito.

NTE955S Features

* D Direct Replacement for 555 Timers D Timing from Microseconds through Hours D Operates in Both Astable and Monostable Modes D Adjustable Duty Cycle D High Current Output Can Source or Sink 200mA D Output and Supply TTL Compatible TTL D Temperature Stability of 0.005% per °C D Normally “ON” or Norm

NTE955S Datasheet (28.43 KB)

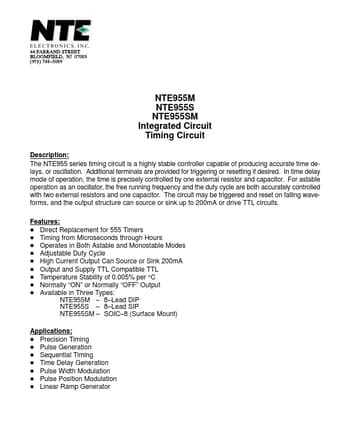

Preview of NTE955S PDF
NTE955S Datasheet Preview Page 2 NTE955S Datasheet Preview Page 3

Datasheet Details

Part number:

NTE955S

Manufacturer:

NTE Electronics

File Size:

28.43 KB

Description:

Integrated circuit timing circuit.
