2N2646 - Unijunction Transistor

2N2646 Description

2N2646 Unijunction Transistor TO *18 Package .
The 2N2646 is designed for use in pulse and timing circuits, sensing circuits and thyristor trigger circuits.

2N2646 Features

* D Low Peak Point Current: 5A (Max) D Low Emitter Reverse Current: .005A (Typ) D Passivated Surface for Reliability & Uniformity Absolute Maximum Ratings: (TA = +25C unless otherwise specified) Power Dissipation (Note 1), PD

📥 Download Datasheet

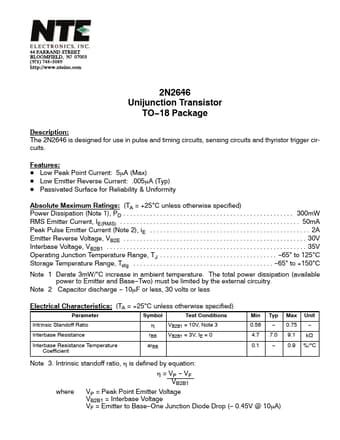

Preview of 2N2646 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N2646
Manufacturer
NTE
File Size
62.57 KB
Datasheet
2N2646-NTE.pdf
Description
Unijunction Transistor
