NTE105 - Germanium PNP Transistor

Datasheet Summary

Description

The NTE105 is a germanium PNP power transistor in a TO36 type package designed for use in power switching and amplifier applications.

Emitter Voltage, VCES

.

.

.

📥 Download Datasheet

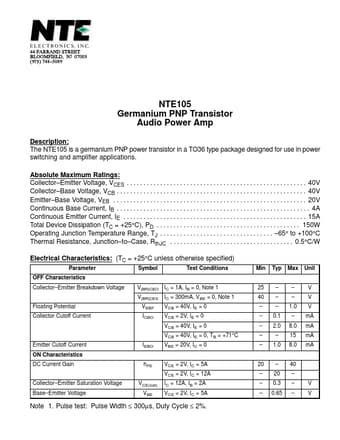

Datasheet preview – NTE105

Datasheet Details

Part number NTE105
Manufacturer NTE
File Size 22.80 KB
Description Germanium PNP Transistor
Datasheet download datasheet NTE105 Datasheet
Additional preview pages of the NTE105 datasheet.

📁 Similar Datasheet

  • NTE1052 - Integrated Circuit Low Noise Preamp (NTE Electronics)
  • NTE1053 - Integrated Circuit AF High Gain Preamplifier (NTE Electronics)
  • NTE1056 - Integrated Circuit FM Stereo Multiplex Demodulator (NTE Electronics)
  • NTE1057 - Integrated Circuit FM IF Amplifier (NTE Electronics)
  • NTE1058 - Integrated Circuit Audio Power Amp (NTE Electronics)
  • NTE1012 - Integrated Circuit Module - Hybrid (NTE Electronics)
  • NTE1026 - Integrated Circuit Module (NTE Electronics)
  • NTE1039 - Integrated Circuit FM IF Amplifier (NTE Electronics)
  • NTE1096 - High Frequency Wide-Band Amplifier/Phase Detector (NTE Electronics)
  • NTE1205MC - DC/DC Converters (Murata)
Other Datasheets by NTE
  • NTE1054 - Integrated Circuit FM/AM IF Amp
  • NTE1055 - Integrated Circuit FM/AM IF Amp
  • NTE10 - Silicon NPN Transistor UHF Low Noise Wide.Band Amplifier
  • NTE100 - Germanium Complementary Transistors Oscillator
  • NTE1002 - Integrated Circuit FM IF TV Amp
  • NTE1003 - Integrated Circuit FM/AM IF Amplifier
  • NTE1005 - Integrated Circuit FM Stereo Demodulator
  • NTE1006 - Integrated Circuit FM Multiplex Stereo Demodulator

Full PDF Text Transcription

Click to expand full text
NTE105 Germanium PNP Transistor Audio Power Amp Description: The NTE105 is a germanium PNP power transistor in a TO36 type package designed for use in power switching and amplifier applications. Absolute Maximum Ratings: Collector–Emitter Voltage, VCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V Collector–Base Voltage, VCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V Emitter–Base Voltage, VEB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20V Continuous Base Current, IB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
