NTE7211 - (NTE7211 / NTE7212) Class AB Audio Power Amplifier

NTE

The NTE7211 by NTE is a (NTE7211 / NTE7212) Class AB Audio Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

NTE7211 (NTE7211 / NTE7212) Class AB Audio Power Amplifier by NTE - Datasheet Preview — Official preview page of the **NTE7211** (NTE7211 / NTE7212) Class AB Audio Power Amplifier datasheet (NTE).

Datasheet Details

Part number	NTE7211
Manufacturer	NTE
File Size	103.98 KB
Description	(NTE7211 / NTE7212) Class AB Audio Power Amplifier
Datasheet	NTE7211-NTE.pdf
Additional preview pages of the NTE7211 datasheet.

NTE7211 Product details

Description

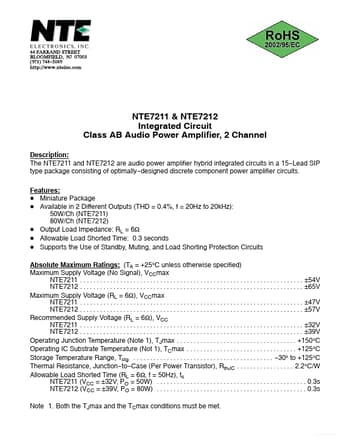

The NTE7211 and NTE7212 are audio power amplifier hybrid integrated circuits in a 15 Lead SIP type package consisting of optimally designed discrete component power amplifier circuits.

Features

D Miniature Package D Available in 2 Different Outputs (THD = 0.4%, f = 20Hz to 20kHz): 50W/Ch (NTE7211) 80W/Ch (NTE7212) D Output Load Impedance: RL = 6Ω D Allowable Load Shorted Time: 0.3 seconds D Supports the Use of Standby, Muting, and Load Shorting Protection Circuits Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum Supply Voltage (No Signal), VCCmax NTE7211.
