NTE7212, NTE7211 - (NTE7211 / NTE7212) Class AB Audio Power Amplifier

NTE

The NTE7212 by NTE is a (NTE7211 / NTE7212) Class AB Audio Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

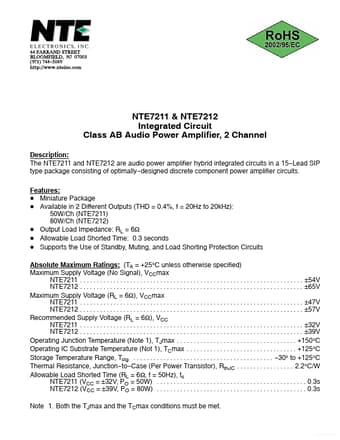

NTE7212 (NTE7211 / NTE7212) Class AB Audio Power Amplifier by NTE - Datasheet Preview — Official preview page of the **NTE7212** (NTE7211 / NTE7212) Class AB Audio Power Amplifier datasheet (NTE).

Datasheet Details

Part number	NTE7212, NTE7211
Manufacturer	NTE
File Size	103.98 KB
Description	(NTE7211 / NTE7212) Class AB Audio Power Amplifier
Datasheet	NTE7211-NTE.pdf
Note	This datasheet PDF includes multiple part numbers: NTE7212, NTE7211. Please refer to the document for exact specifications by model.
Additional preview pages of the NTE7212 datasheet.

NTE7212 Product details

Description

The NTE7211 and NTE7212 are audio power amplifier hybrid integrated circuits in a 15 Lead SIP type package consisting of optimally designed discrete component power amplifier circuits.

Features

D Miniature Package D Available in 2 Different Outputs (THD = 0.4%, f = 20Hz to 20kHz): 50W/Ch (NTE7211) 80W/Ch (NTE7212) D Output Load Impedance: RL = 6Ω D Allowable Load Shorted Time: 0.3 seconds D Supports the Use of Standby, Muting, and Load Shorting Protection Circuits Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum Supply Voltage (No Signal), VCCmax NTE7211.
