NTE72 - Silicon NPN Transistor High Current Amp / Fast Switch

Name: NTE72
SKU: NTE72-467836

NTE Electronics

The NTE72 by NTE Electronics is a Silicon NPN Transistor High Current Amp / Fast Switch. Below is the official datasheet preview.

Datasheet Details

Part number	NTE72
Manufacturer	NTE Electronics
File Size	25.24 KB
Description	Silicon NPN Transistor High Current Amp / Fast Switch
Datasheet	NTE72_NTEElectronics.pdf

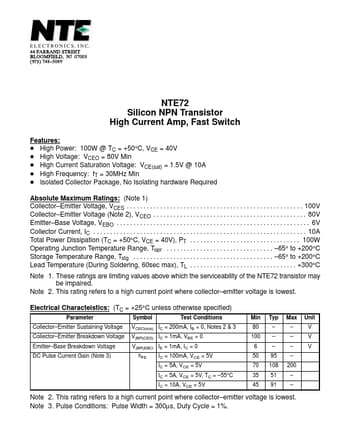

Additional preview pages of the NTE72 datasheet.

D High Power: 100W @ TC = +50°C, VCE = 40V D High Voltage: VCEO = 80V Min D High Current Saturation Voltage: VCE(sat) = 1.5V @ 10A D High Frequency: fT = 30MHz Min D Isolated Collector Package, No Isolating hardware Required Absolute Maximum Ratings: (Note 1) Collector.
Emitter Voltage, VCES.
. . . 100V Collector.
Emitter Voltage (Note 2), VCEO.
