NTE7123

Integrated Circuit Sync Deflection Circuit

NTE7123 Features

* D Non

* adjusting at vertical sync 50Hz/60Hz due to vertical pull

* in range of 20Hz. D Horizontal and vertical oscillations are stable against variations in ambient temperature and supply voltage due to small warm

* up drift. D Small variation in horizontal oscillation frequency.

NTE7123 General Description

The NTE7123 is an integrated circuit that has a wide vertical pull

*in range of 20Hz and contains a generator of horizontal, vertical blanking as well as the main functions required to provide synchronization and deflection in color CRT displays and also accepts TTL input. It is a multifunct.

NTE7123 Datasheet (98.60 KB)

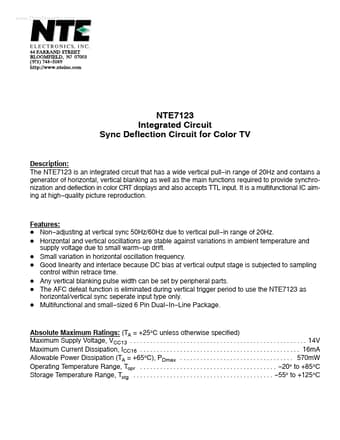

Preview of NTE7123 PDF

Datasheet Details

Part number:

NTE7123

Manufacturer:

NTE

File Size:

98.60 KB

Description:

Integrated circuit sync deflection circuit.
