NTE7100 - Integrated Circuit Protector IC for Stereo Power Amplifier

Product Overview

NTE Electronics

Part number	NTE7100
Manufacturer	NTE Electronics
File Size	21.34 KB
Description	Integrated Circuit Protector IC for Stereo Power Amplifier
Datasheet	NTE7100 Datasheet

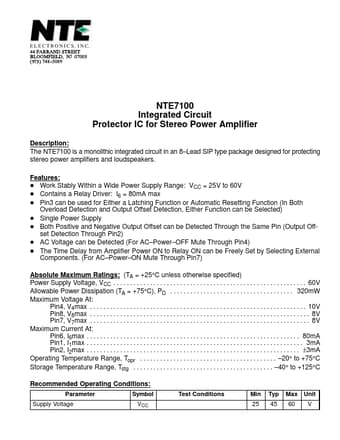

Additional preview pages of the NTE7100 datasheet.

The NTE7100 is a monolithic integrated circuit in an 8 Lead SIP type package designed for protecting stereo power amplifiers and loudspeakers.

D Work Stably Within a Wide Power Supply Range: VCC = 25V to 60V D Contains a Relay Driver: I6 = 80mA max D Pin3 can be used for Either a Latching Function or Automatic Resetting Function (In Both Overload Detection and Output Offset Detection, Either Function can be Selected) D Single Power Supply D Both Positive and Negative Output Offset can be Detected Through the Same Pin (Output Offset Detection Through Pin2) D AC Voltage can be Detected (For AC.
Power.
OFF Mute Through Pin4.
