NTE7129

Integrated Circuit IF Signal Processing (Super PLL-II VIF SIF) Circuit

NTE7129 Features

* D Excellent Buzz and Buzz

* Beat Characteristics due to PLL D Built

* In APC Time Constant Switch D Duplicate Time Constant System Suited for High

* Speed AGC D Excellent DG and DP Characteristics D RF AGC Adjustment is Simple Functions: VIF Block D VIF Amplifier D VCO D APC Filte

NTE7129 General Description

The NTE7129 is an intercarrier

*type VIF + SIF integrated circuit in a 24

*Lead DIP type package that supports excellent sound and image quality. The pin assignment of the NTE7129 is identical to that of the NTE7130, allowing the NTE7130 to be used for split systems while the NTE7129 .

NTE7129 Datasheet (100.81 KB)

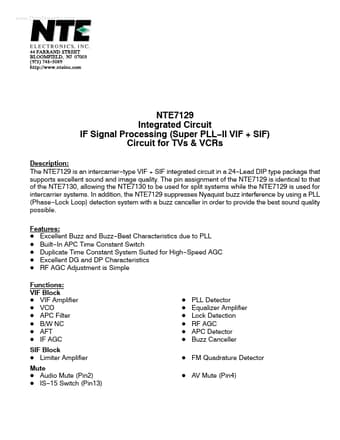

Preview of NTE7129 PDF
