NTE7120

Integrated Circuit 3 Channel Video Amp for High Resolution Color TV

NTE7120 Features

* D The employment of a new bi

* polar wafer process makes it possible to reduce power dissipation, and 3 channels can be incorporated in this amplifier (VCC = 12V, ICC = 77mA) D Input: 1VP

* P (Typical) Output: VP

* P (Maximum) Frequency Band: 50MHz D Main and sub contrast and lumi

NTE7120 General Description

The NTE7120 is a semiconductor integrated circuit in a 30

*Lead DIP type package that has a built

*in 3

*channel amplifier with 50MHz band. Every channel is provided with a broad

*band amplifier, main/ sub contrast control, main/sub luminance (brightness) control, peakin.

NTE7120 Datasheet (21.65 KB)

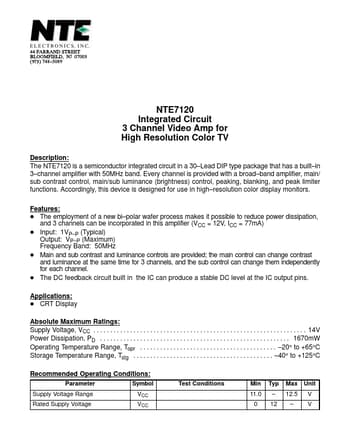

Preview of NTE7120 PDF

Datasheet Details

Part number:

NTE7120

Manufacturer:

NTE Electronics

File Size:

21.65 KB

Description:

Integrated circuit 3 channel video amp for high resolution color tv.
