NTE7178 thru NTE7181 Integrated Circuit Module *3 Channel Convergence Correction Circuit for Video Projection Televisions .
The NTE7178 thru NTE7181 are convergence correction circuits designed for use in video projectors.

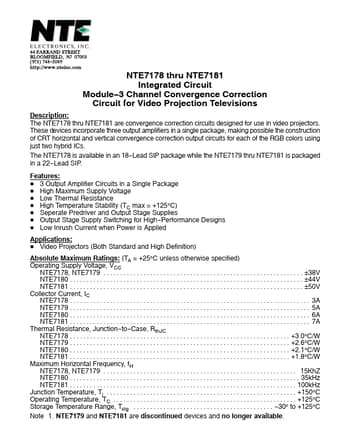

datasheet Preview Page 1 from Datasheet4u.com

NTE7178-NTE.pdf

NTE7179 Datasheet Preview — This datasheet PDF includes multiple part numbers: NTE7179, NTE7178. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NTE7179, NTE7178

Manufacturer:

NTE

File Size:

79.12 KB

Description:

Module-3 Channel Convergence Correction Circuit

Note:

This datasheet PDF includes multiple part numbers: NTE7179, NTE7178.
Please refer to the document for exact specifications by model.

Features

* D 3 Output Amplifier Circuits in a Single Package D High Maximum Supply Voltage D Low Thermal Resistance D High Temperature Stability (TC max = +125°C) D Seperate Predriver and Output Stage Supplies D Output Stage Supply Switching for High
* Performance Designs D Low Inrush Current when Power

Applications

* D Video Projectors (Both Standard and High Definition) Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Operating Supply Voltage, VCC NTE7178, NTE7179
