NTE7103 Datasheet, Driver, NTE Electronics

NTE7103 Features

• Driver D Low Distortion 0.002% Typ. (VCC = ±46V, f = 1kHz, Av = 30dB, PO = 50W, RL = 8Ω w/Power Transistor) 0.006% Typ. (VCC = ±46V, f = 20kHz, Av = 30dB, PO = 50W, RL = 8Ω w/Power Transistor

PDF File Details

Part number:

NTE7103

Manufacturer:

NTE Electronics

File Size:

23.22kb

Download:

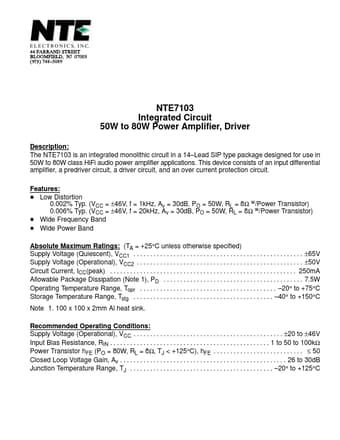

📄 Datasheet

Description:

Integrated circuit 50w to 80w power amplifier / driver. The NTE7103 is an integrated monolithic circuit in a 14  –Lead SIP type package designed for use in 50W to 80W class H

NTE7103 Application

• Applications This device consists of an input differential amplifier, a predriver circuit, a driver circuit, and an over current protection circuit
