NTE7113

Dual Audio Power Amplifier

NTE7113 Features

* D High Output Power: 14W x 2 D Incorporates Protection Circuits: Temperature, Over

* Voltage, VOUT

* GND Short, VOUT

* VCC Short D Low Shock Noise fromm Power ON/OFF Operation D Fewer External Components D High Stable Operation Absolute Maximum Ratings: (TA = +25°C unless oth

NTE7113 General Description

The NTE7113 is an integrated circuit in a 16

*Lead Staggered SIP type package designed for use as a 14W (13.2V, 4Ω) output power amplifier. Stereo operation is enabled due to incorporating two BTL amplifiers. High reliability is obtained due to incorporating protectors. ON/OFF is enabled eve.

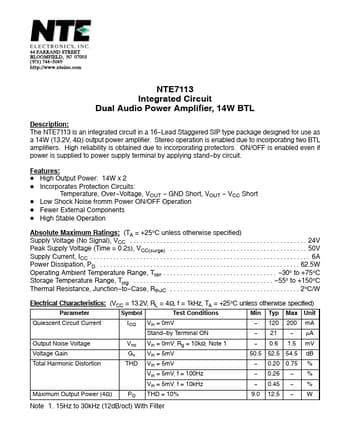

NTE7113 Datasheet (78.16 KB)

Preview of NTE7113 PDF

Datasheet Details

Part number:

NTE7113

Manufacturer:

NTE

File Size:

78.16 KB

Description:

Dual audio power amplifier.
