NTE7112 - Integrated Circuit Color TV Video Signal/Chrominance Signal Processing Circuit

NTE Electronics

📥 Download Datasheet

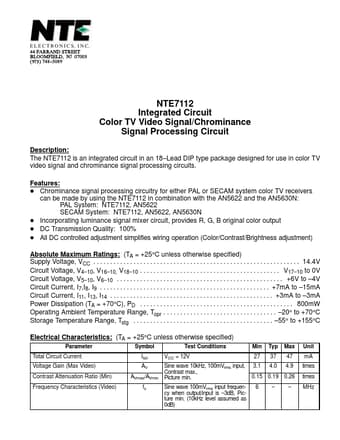

NTE7112 Datasheet Preview — Preview of NTE7112 PDF

Datasheet Details

Part number: NTE7112
Manufacturer: NTE Electronics
File Size: 28.04 KB
Datasheet: NTE7112_NTEElectronics.pdf
Description: Integrated Circuit Color TV Video Signal/Chrominance Signal Processing Circuit

NTE7112 Product details

Description

The NTE7112 is an integrated circuit in an 18 Lead DIP type package designed for use in color TV video signal and chrominance signal processing circuits.

Features

D Chrominance signal processing circuitry for either PAL or SECAM system color TV receivers can be made by using the NTE7112 in combination with the AN5622 and the AN5630N: PAL System: NTE7112, AN5622 SECAM System: NTE7112, AN5622, AN5630N D Incorporating luminance signal mixer circuit, provides R, G, B original color output D DC Transmission Quality: 100% D All DC controlled adjustment simplifies wiring operation (Color/Contrast/Brightness adjustment) Absolute Maximum Ratings: (TA = +25°C unle.
