NTE7117 - Integrated Circuit Switched-Mode Power Supply Controller

NTE Electronics

📥 Download Datasheet

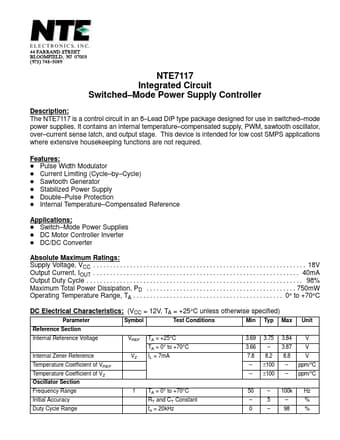

NTE7117 Datasheet Preview — Preview of NTE7117 PDF

Datasheet Details

Part number: NTE7117
Manufacturer: NTE Electronics
File Size: 22.42 KB
Datasheet: NTE7117_NTEElectronics.pdf
Description: Integrated Circuit Switched-Mode Power Supply Controller

NTE7117 Product details

Description

The NTE7117 is a control circuit in an 8 Lead DIP type package designed for use in switched mode power supplies. compensated supply, PWM, sawtooth oscillator, over current sense latch, and output stage.

Features

D Pulse Width Modulator D Current Limiting (Cycle.
by.
Cycle) D Sawtooth Generator D Stabilized Power Supply D Double.
Pulse Protection D Internal Temperature.
Compensated Reference.
