NTE7116 Datasheet - NTE Electronics

NTE7116 Integrated Circuit Phase Lock Loop (PLL) Stereo Decoder (BTSC System)

The NTE7116 is a phase lock loop (PLL) stereo decoder in a 20 *Lead DIP type package designed primarily for low cost stereo decoding in a low *to *medium *line TV. The MUX input (Pin1) is a low impedance current input, the gain of the input amplifier is therefore determi.

NTE7116 Features

* D Wide Supply Voltage Range D Automatic Mono/Stereo Switching (Pilot Presence Detector) D LED Driver for Stereo Indicator D Smooth Mono/Stereo Control D Matrix and Two Amplifiers for Left and Right Output Signals D A Source Selector to Switch between the MUX Signal and an External Signal D Mute Cir

NTE7116_NTEElectronics.pdf

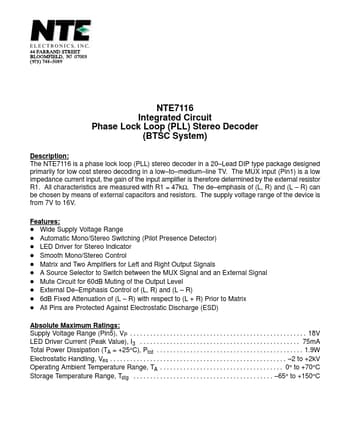

NTE7116 Datasheet Preview — Preview of NTE7116 PDF

Datasheet Details

Part number:

NTE7116

Manufacturer:

NTE Electronics

File Size:

37.80 KB

Description:

Integrated circuit phase lock loop (pll) stereo decoder (btsc system).
