NTE7101 Datasheet, 7w, NTE Electronics

NTE7101 Features

• 7w a low thermal resistance providing easy design for 2Ω load circuits and 4Ω load BTL circuits. Features: D High Output Power: PO = 7W Typ @ RL = 4Ω, THD = 10%, VCC = 14.4V PO = 11W Typ @

PDF File Details

Part number:

NTE7101

Manufacturer:

NTE Electronics

File Size:

22.41kb

Download:

📄 Datasheet

Description:

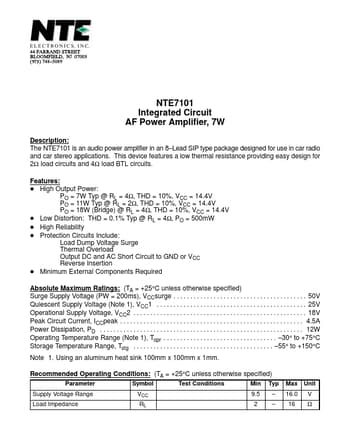

Integrated circuit af power amplifier / 7w. The NTE7101 is an audio power amplifier in an 8  –Lead SIP type package designed for use in car radio and car stereo a

NTE7101 Application

• Applications This device features a low thermal resistance providing easy design for 2Ω load circuits and 4Ω load BTL circuits. Features: D High Ou
