NTE712 - Integrated Circuit TV/FM Sound IF Detector

NTE Electronics

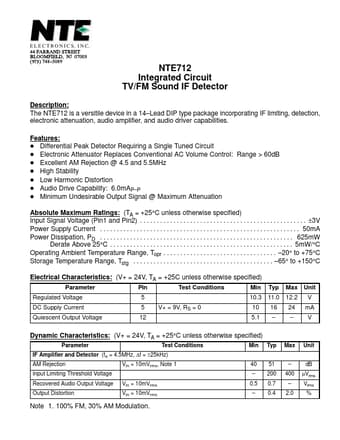

The NTE712 by NTE Electronics is a Integrated Circuit TV/FM Sound IF Detector. Below is the official datasheet preview.

📥 Download Datasheet

NTE712 Integrated Circuit TV/FM Sound IF Detector by NTE Electronics - Datasheet Preview — Official preview page of the **NTE712** Integrated Circuit TV/FM Sound IF Detector datasheet (NTE Electronics).

Datasheet Details

Part number	NTE712
Manufacturer	NTE Electronics
File Size	25.23 KB
Description	Integrated Circuit TV/FM Sound IF Detector
Datasheet	NTE712_NTEElectronics.pdf
Additional preview pages of the NTE712 datasheet.

NTE712 Product details

Description

The NTE712 is a versitile device in a 14 Lead DIP type package incorporating IF limiting, detection, electronic attenuation, audio amplifier, and audio driver capabilities.

Features

D Differential Peak Detector Requiring a Single Tuned Circuit D Electronic Attenuator Replaces Conventional AC Volume Control: Range > 60dB D Excellent AM Rejection @ 4.5 and 5.5MHz D High Stability D Low Harmonic Distortion D Audio Drive Capability: 6.0mAP.
P D Minimum Undesirable Output Signal @ Maximum Attenuation Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Input Signal Voltage (Pin1 and Pin2).
