NTE7011

20W Audio Power Amplifier Circuit

NTE7011 Features

* D Low Quiescent Current, Low Distortion, Low Noise, High Output Power D Wide Supply Voltage range: VCC = 6 to 26V D Built

* In Muting Circuit D Built

* In Protection Circuits: Temperature, Surge, Overcurrent D Built

* In Headphone Amplifier Circuit Absolute Maximum Ratings: (TA =

NTE7011 General Description

The NTE7011 is an integrated circuit in a 12

*Lead SIP type package designed for use as a BTL power amplifier with built

*in headphone amp for portable stereo applications. Typical applications include portable component stereos, car stereo, radio cassette recorders, and TV sound mult.

NTE7011 Datasheet (71.59 KB)

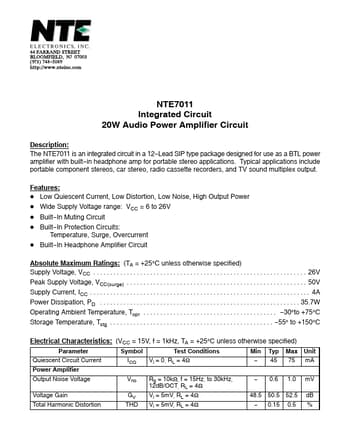

Preview of NTE7011 PDF

Datasheet Details

Part number:

NTE7011

Manufacturer:

NTE

File Size:

71.59 KB

Description:

20w audio power amplifier circuit.
