NTE7019

Integrated Circuit Digital Tuning System Interface for TV Systems

NTE7019 Features

* D All

* in

* One Chip Incorporating the Peripheral Blocks of the PLL System D Built

* In Synchronized Separate for Channel Detecting Circuit D Externally Controllable Channel Detection Level D High Current Low

* Saturation

* Voltage Band Switch Output: VO(sat) = 0.3V T

NTE7019 General Description

The NTE7019 is an integrated circuit in a 16

*Lead DIP type package developed to facilitate the Phase Lock Loop (PLL) digital tuning system interface for TV systems. Since all the peripheral blocks are incorporated into this device, the number of peripheral parts can be greatly reduced. Feat.

NTE7019 Datasheet (26.64 KB)

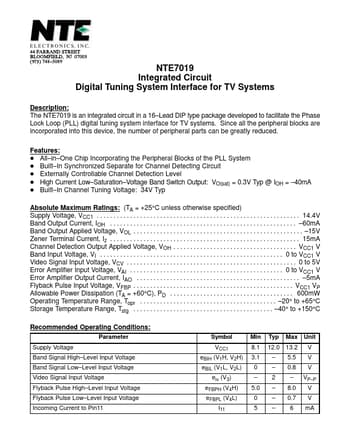

Preview of NTE7019 PDF

Datasheet Details

Part number:

NTE7019

Manufacturer:

NTE Electronics

File Size:

26.64 KB

Description:

Integrated circuit digital tuning system interface for tv systems.
