NTE7018 - Integrated Circuit Small-Signal Subsystem for Color TV

NTE Electronics

📥 Download Datasheet

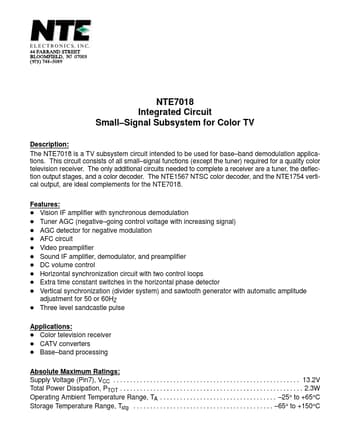

NTE7018 Datasheet Preview — Preview of NTE7018 PDF

Datasheet Details

Part number: NTE7018
Manufacturer: NTE Electronics
File Size: 45.65 KB
Datasheet: NTE7018_NTEElectronics.pdf
Description: Integrated Circuit Small-Signal Subsystem for Color TV

NTE7018 Product details

Description

The NTE7018 is a TV subsystem circuit intended to be used for base band demodulation applications. signal functions (except the tuner) required for a quality color television receiver.

Features

D Vision IF amplifier with synchronous demodulation D Tuner AGC (negative.
going control voltage with increasing signal) D AGC detector for negative modulation D AFC circuit D Video preamplifier D Sound IF amplifier, demodulator, and preamplifier D DC volume control D Horizontal synchronization circuit with two control loops D Extra time constant switches in the horizontal phase detector D Vertical synchronization (divider system) and sawtooth generator with automatic amplitude adjustmen.
