NTE7013

Integrated Circuit Remote Control Preamp with Active Low

NTE7013 Features

* D On

* Chip Band

* Pass Filter: Frequenct Range 30 to 60kHz D High Gain Pre

* Amplifier: 86dB Typ D Detector for PCM Demodulation D Low Current Consumption D Minimum External Components Absloute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage (Rg = 0Ω), VCC

NTE7013 General Description

The NTE7013 is a bipolar integrated circuit in an 8

*Lead DIP type package intended for infrared remote control applications. This device has an active “Low” output polarity and contains a high

*gain amplifier, a limiter amplifier, a band

*pass filter, a detector, and a pulse s.

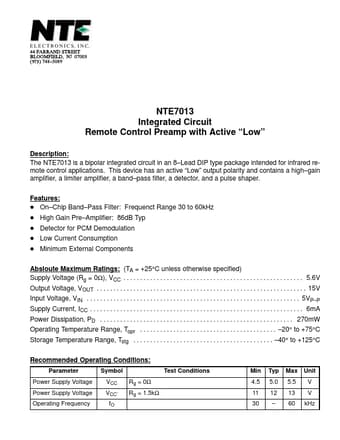

NTE7013 Datasheet (22.92 KB)
