NTE701 - Integrated Circuit Video Signal Processor

NTE Electronics

📥 Download Datasheet

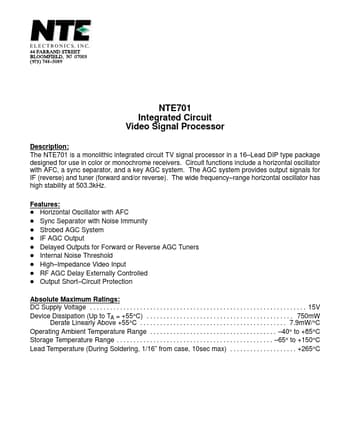

NTE701 Datasheet Preview — Preview of NTE701 PDF

Datasheet Details

Part number: NTE701
Manufacturer: NTE Electronics
File Size: 26.29 KB
Datasheet: NTE701_NTEElectronics.pdf
Description: Integrated Circuit Video Signal Processor

NTE701 Product details

Description

The NTE701 is a monolithic integrated circuit TV signal processor in a 16 Lead DIP type package designed for use in color or monochrome receivers. range horizontal oscillator has high stability at 503.3kHz.

Features

D Horizontal Oscillator with AFC D Sync Separator with Noise Immunity D Strobed AGC System D IF AGC Output D Delayed Outputs for Forward or Reverse AGC Tuners D Internal Noise Threshold D High.
Impedance Video Input D RF AGC Delay Externally Controlled D Output Short.
Circuit Protection Absolute Maximum Ratings: DC Supply Voltage.
15V Device Dissipation (Up to TA = +.
