NTE700 - Integrated Circuit TV Chroma System

NTE Electronics

📥 Download Datasheet

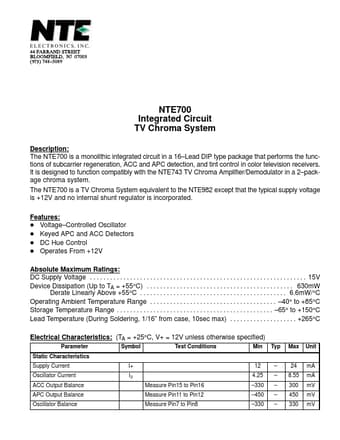

NTE700 Datasheet Preview — Preview of NTE700 PDF

Datasheet Details

Part number: NTE700
Manufacturer: NTE Electronics
File Size: 22.64 KB
Datasheet: NTE700_NTEElectronics.pdf
Description: Integrated Circuit TV Chroma System

NTE700 Product details

Description

The NTE700 is a monolithic integrated circuit in a 16 Lead DIP type package that performs the functions of subcarrier regeneration, ACC and APC detection, and tint control in color television receivers. package chroma system.

Features

D Voltage.
Controlled Oscillator D Keyed APC and ACC Detectors D DC Hue Control D Operates From +12V Absolute Maximum Ratings: DC Supply Voltage.
15V Device Dissipation (Up to TA = +55°C).
. . . . 630mW Derate Linearly Above +55°C.
.
