NTE7005 - Integrated Circuit 2-Phase Stepping Motor Driver

NTE Electronics

📥 Download Datasheet

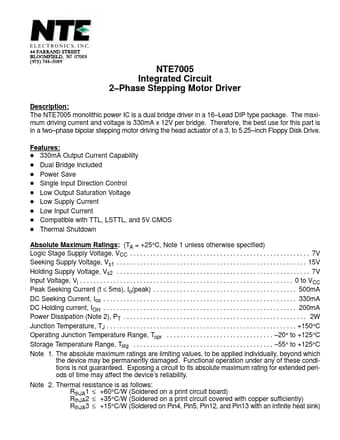

NTE7005 Datasheet Preview — Preview of NTE7005 PDF

Datasheet Details

Part number: NTE7005
Manufacturer: NTE Electronics
File Size: 27.31 KB
Datasheet: NTE7005_NTEElectronics.pdf
Description: Integrated Circuit 2-Phase Stepping Motor Driver

NTE7005 Product details

Description

The NTE7005 monolithic power IC is a dual bridge driver in a 16 Lead DIP type package. phase bipolar stepping motor driving the head actuator of a 3, to 5.25 inch Floppy Disk Drive.

Features

D 330mA Output Current Capability D Dual Bridge Included D Power Save D Single Input Direction Control D Low Output Saturation Voltage D Low Supply Current D Low Input Current D Compatible with TTL, LSTTL, and 5V CMOS D Thermal Shutdown Absolute Maximum Ratings: (TA = +25°C, Note 1 unless otherwise specified) Logic Stage Supply Voltage, VCC.
. . . . 7V Seeking Supply Voltage, Vs1.
