74HC4511 - BCD to 7-segment latch/decoder/driver

Description

The 74HC4511; 74HCT4511 is a BCD to 7-segment latch/decoder/driver with four address inputs (A, B, C, D), a latch enable input (LE), a ripple blanking input (BI), a lamp test input (LT), and seven segment outputs (a to g).

Features

  • Complies with JEDEC standard no. 7A.
  • Input levels:.
  • For 74HC4511:.

📥 Download Datasheet

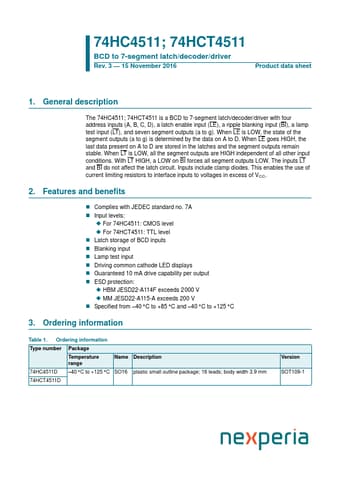

Datasheet preview – 74HC4511

Datasheet Details

Part number 74HC4511
Manufacturer NXP Semiconductors
File Size 733.80 KB
Description BCD to 7-segment latch/decoder/driver
Datasheet download datasheet 74HC4511 Datasheet
Additional preview pages of the 74HC4511 datasheet.

📁 Similar Datasheet

  • 74HC4511 - BCD to 7-segment latch/decoder/driver (nexperia)
  • 74HC4511D - BCD to 7-segment latch/decoder/driver (nexperia)
  • 74HC4510 - BCD up/down counter (Philips)
  • 74HC4514 - 4-to-16 line decoder/demultiplexer (nexperia)
  • 74HC4514D - 4-to-16 line decoder/demultiplexer (nexperia)
  • 74HC4515 - 4-to-16 line decoder/demultiplexer (nexperia)
  • 74HC4515D - 4-to-16 line decoder/demultiplexer (nexperia)
  • 74HC4516 - Binary up/down counter (Philips)
  • 74HC4518 - Dual synchronous BCD counter (Philips)
  • 74HC4520 - Dual 4-bit synchronous binary counter (nexperia)
Other Datasheets by NXP Semiconductors
  • 74HC4510 - BCD up/down counter
  • 74HC4514 - 4-to-16 line decoder/demultiplexer
  • 74HC4515 - 4-to-16 line decoder/demultiplexer
  • 74HC4516 - Binary up/down counter
  • 74HC4518 - Dual synchronous BCD counter
  • 74HC4520 - Dual 4-Bit Synchronous Binary Counter
  • 74HC4538 - Dual retriggerable precision monostable multivibrator
  • 74HC4543 - BCD to 7-segment latch/decoder/driver

Full PDF Text Transcription

Click to expand full text
74HC4511; 74HCT4511 BCD to 7-segment latch/decoder/driver Rev. 3 — 15 November 2016 Product data sheet 1. General description The 74HC4511; 74HCT4511 is a BCD to 7-segment latch/decoder/driver with four address inputs (A, B, C, D), a latch enable input (LE), a ripple blanking input (BI), a lamp test input (LT), and seven segment outputs (a to g). When LE is LOW, the state of the segment outputs (a to g) is determined by the data on A to D. When LE goes HIGH, the last data present on A to D are stored in the latches and the segment outputs remain stable. When LT is LOW, all the segment outputs are HIGH independent of all other input conditions. With LT HIGH, a LOW on BI forces all segment outputs LOW. The inputs LT and BI do not affect the latch circuit. Inputs include clamp diodes.
