BLD6G21LS-50, BLD6G21L-50, TD-SCDMA 2010 MHz to 2025 MHz fully integrated Doherty transistor

BLD6G21L-50; BLD6G21LS-50 TD-SCDMA 2010 MHz to 2025 MHz fully integrated Doherty transistor Rev.01 * 28 October 2009 Objective data sheet 1..
The BLD6G21L-50 and BLD6G21LS-50 incorporate a fully integrated Doherty solution using NXP’s state of the art GEN6 LDMOS technology.

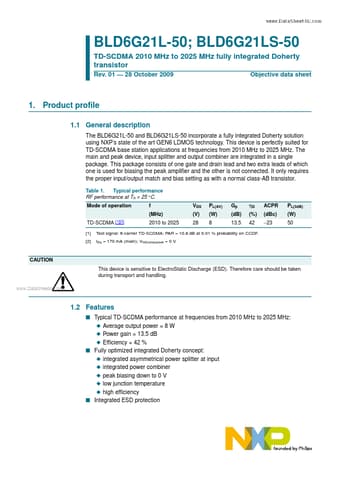

datasheet Preview Page 1 from Datasheet4u.com

BLD6G21L-50_NXPSemiconductors.pdf

BLD6G21LS-50 Datasheet Preview — This datasheet PDF includes multiple part numbers: BLD6G21LS-50, BLD6G21L-50. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BLD6G21LS-50, BLD6G21L-50

Manufacturer:

NXP ↗ Semiconductors

File Size:

162.90 KB

Description:

TD-SCDMA 2010 MHz to 2025 MHz fully integrated Doherty transistor

Note:

This datasheet PDF includes multiple part numbers: BLD6G21LS-50, BLD6G21L-50.
Please refer to the document for exact specifications by model.

Features

* I Typical TD-SCDMA performance at frequencies from 2010 MHz to 2025 MHz: N Average output power = 8 W N Power gain = 13.5 dB N Efﬁciency = 42 % I Fully optimized integrated Doherty concept: N integrated asymmetrical power splitter at input N integrated power combiner N peak biasing down to 0 V N low

Applications

* at frequencies from 2010 MHz to 2025 MHz. The main and peak device, input splitter and output combiner are integrated in a single package. This package consists of one gate and drain lead and two extra leads of which one is used for biasing the peak ampliﬁer and the other is not connected. It only r
