BLD6G22L-50 - W-CDMA 2110 MHz To 2170 MHz Fully Integrated Doherty Transistor

Product Overview

NXP Semiconductors

📥 Download Datasheet

BLD6G22L-50 W-CDMA 2110 MHz To 2170 MHz Fully Integrated Doherty Transistor by NXP Semiconductors - Datasheet Preview — Datasheet preview – BLD6G22L-50

Datasheet Details

Part number	BLD6G22L-50
Manufacturer	NXP Semiconductors
File Size	144.24 KB
Description	W-CDMA 2110 MHz To 2170 MHz Fully Integrated Doherty Transistor
Datasheet	BLD6G22L-50 Datasheet

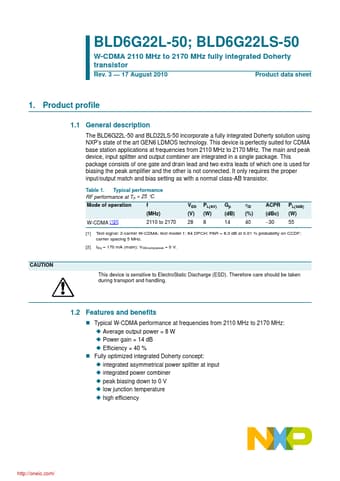

Additional preview pages of the BLD6G22L-50 datasheet.

Product details

Description

The BLD6G22L-50 and BLD22LS-50 incorporate a fully integrated Doherty solution using NXP’s state of the art GEN6 LDMOS technology.

Features

Typical W-CDMA performance at frequencies from 2110 MHz to 2170 MHz: Average output power = 8 W Power gain = 13.3 dB Efficiency = 38 %.
Fully optimized integrated Doherty concept: integrated asymmetrical power splitter at input integrated power combiner peak biasing down to 0 V low junction temperature high efficiency NXP Semiconductors BLD6G22L-50; BLD6G22LS-50 W-CDMA 2110 MHz to 2170 MHz fully integrated Doherty transistor.
