IP4254CZ8 passive filter network

NXP Semiconductors

Description

DataSheet.in IP4253CZ8/CZ12/CZ16; IP4254CZ8/CZ12/CZ16 Integrated 4-, 6- and 8-channel passive ﬁlter network with ESD protection to IEC 61000-4-2, lev.
The IP4253CZ8/CZ12/CZ16; IP4254CZ8/CZ12/CZ16 family consists of 4-, 6- and 8-channel RC low-pass ﬁlter arrays which are designed to provide ﬁltering o.

📥 Download Datasheet

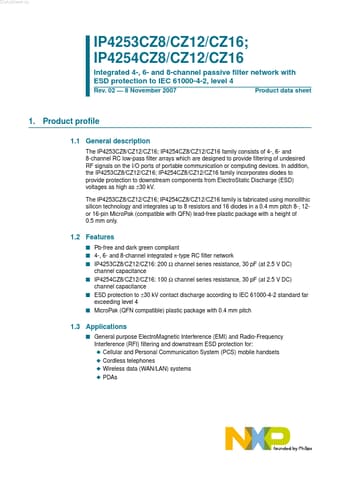

IP4254CZ8 Datasheet Preview — Preview of IP4254CZ8 PDF

Datasheet Specifications

Part number: IP4254CZ8
Manufacturer: NXP ↗ Semiconductors
File Size: 82.41 KB
Datasheet: IP4254CZ8_NXPSemiconductors.pdf
Description: passive filter network

Features

* I Pb-free and dark green compliant I 4-, 6- and 8-channel integrated π-type RC ﬁlter network I IP4253CZ8/CZ12/CZ16: 200 Ω channel series resistance, 30 pF (at 2.5 V DC) channel capacitance I IP4254CZ8/CZ12/CZ16: 100 Ω channel series resistance, 30 pF (at 2.5 V DC) channel capacitance I ESD protectio

Applications

* I General purpose ElectroMagnetic Interference (EMI) and Radio-Frequency Interference (RFI) ﬁltering and downstream ESD protection for: N Cellular and Personal Communication System (PCS) mobile handsets N Cordless telephones N Wireless data (WAN/LAN) systems N PDAs DataSheet. in NXP Semiconductors
