IP4364CX8

(IP4064CX8 - IP4366CX8) Integrated SIM card passive filter array

IP4364CX8 Features

* Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant) 3-channel SIM card interface integrated RC filter array Integrated 100 Ω/100 Ω/47 Ω series channel resistors Integrated ESD protection withstanding ±15 kV contact discharge, far ex

IP4364CX8 General Description

The IP4064CX8, IP4364CX8 and IP4366CX8 are 3-channel RC low-pass filter arrays which are designed to provide filtering of undesired RF signals in the 800 MHz to 3 000 MHz frequency band. In addition, the IP4064CX8, IP4364CX8 and IP4366CX8 incorporate diodes to provide protection to downstream compon.

IP4364CX8 Datasheet (208.68 KB)

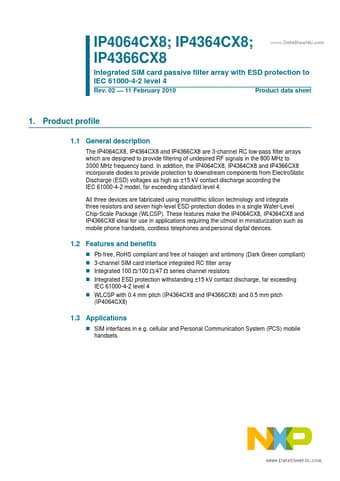

Preview of IP4364CX8 PDF

Datasheet Details

Part number:

IP4364CX8

Manufacturer:

NXP ↗ Semiconductors

File Size:

208.68 KB

Description:

(ip4064cx8 - ip4366cx8) integrated sim card passive filter array.
IP4064CX8; IP4364CX8; IP4366CX8 Rev. 02 11 February 2010 www.DataSheet4U.com Integrated SIM card passive filter array with ESD protection .
