PSMN9R0-30LL N-channel MOSFET

NXP Semiconductors

PSMN9R0-30LL Description

DFN3333-8 PSMN9R0-30LL N-channel DFN3333-8 30 V 9 mΩ logic level MOSFET Rev.5 * 13 December 2011 Product data sheet 1.Product profile .
Logic level N-channel MOSFET in DFN3333-8 package qualified to 150 °C.

PSMN9R0-30LL Features

* High efficiency due to low switching and conduction losses
* Small footprint for compact designs

PSMN9R0-30LL Applications

* Battery protection
* DC-to-DC converters
* Load switching
* Power ORing 1.4 Quick reference data Table 1. Symbol VDS ID Quick reference data Parameter drain-source voltage drain current Ptot total power dissipation Tj junction temperature Static characteristics RDSon drain

📥 Download Datasheet

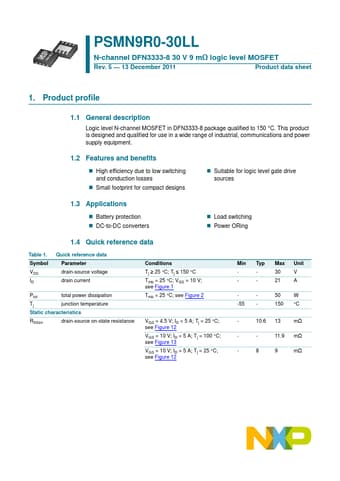

PSMN9R0-30LL Datasheet Preview — Preview of PSMN9R0-30LL PDF
