74HC4051-Q100 8-channel analog multiplexer/demultiplexer

74HC4051-Q100 Description

74HC4051-Q100; 74HCT4051-Q100 8-channel analog multiplexer/demultiplexer Rev.2 * 8 October 2012 Product data sheet 1.General .
The 74HC4051-Q100; 74HCT4051-Q100 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL).

74HC4051-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)
* Specified from 40 C to +85 C and from 40 C to +125 C
* Wide analog input voltage range from 5 V to +5 V
* Low ON resistance:
* 80  (typical) at VCC  VEE = 4.5 V
* 70  (typical) at VCC  VEE =

📥 Download Datasheet

Preview of 74HC4051-Q100 PDF

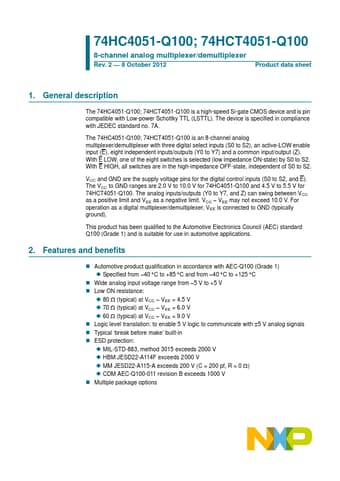

datasheet Preview Page 2 datasheet Preview Page 3
