74HC4050-Q100 Datasheet, Shifter, nexperia

74HC4050-Q100 Features

• Shifter
• Automotive product qualification in accordance with AEC-Q100 (Grade 1)
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C
• Wide supply voltage range

PDF File Details

Part number:

74HC4050-Q100

Manufacturer:

nexperia ↗

File Size:

213.93kb

Download:

📄 Datasheet

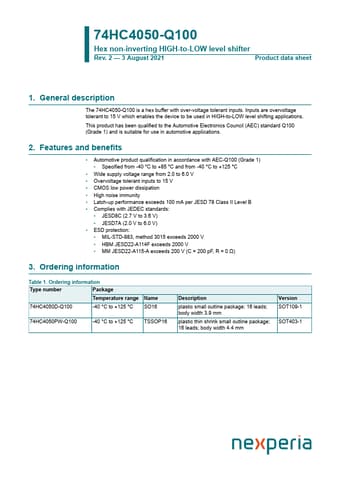

Description:

Hex non-inverting high-to-low level shifter. The 74HC4050-Q100 is a hex buffer with over-voltage tolerant inputs. Inputs are overvoltage tolerant to 15 V which enables the device

74HC4050-Q100 Application

• Applications This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automot
