74HC4051D

The 74HC4051D is 8-Channel Analog Multiplexer/Demultiplexer designed by Toshiba.

Product Overview

Toshiba

Datasheet Details

Part number	74HC4051D
Manufacturer	Toshiba
File Size	276.74 KB
Description	8-Channel Analog Multiplexer/Demultiplexer
Datasheet	74HC4051D-Toshiba.pdf

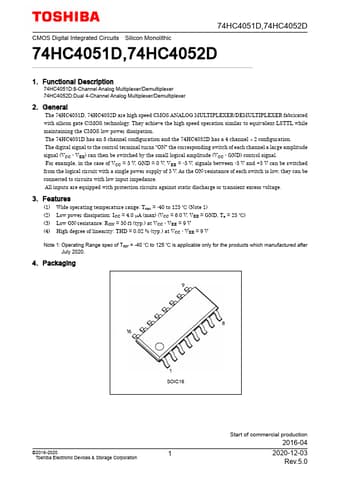

Additional preview pages of the 74HC4051D datasheet.

Product details

Description

74HC4051D:8-Channel Analog Multiplexer/Demultiplexer 74HC4052D:Dual 4-Channel Analog Multiplexer/Demultiplexer 2. General The 74HC4051D, 74HC4052D are high speed CMOS ANALOG MULTIPLEXER/DEMULTIPLEXER fabricated with silicon gate C2MOS technology.They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.The 74HC4051D has an 8 channel configuration and the 74HC4052D has a 4 channel × 2 configuration.The digital signal to the control termi

Features

(1) Wide operating temperature range: Topr = -40 to 125.
(Note 1) (2) Low power dissipation: ICC = 4.0 µA (max) (VCC = 6.0 V, VEE = GND, Ta = 25.
) (3) Low ON-resistance: RON = 50 Ω (typ. ) at VCC - VEE = 9 V (4) High degree of linearity: THD = 0.02 % (typ. ) at VCC - VEE = 9 V Note 1: Operating Range spec of Topr = -40.
to 125.
is applicable only for the products which manufactured after July 2020. 4. Packaging SOIC16 ©2016-2020 1 Toshiba Electronic Devices & Storage Corpor.
