74HC4051FT

The 74HC4051FT is 8-Channel Analog Multiplexer/Demultiplexer designed by Toshiba.

Product Overview

Toshiba

Datasheet Details

Part number	74HC4051FT
Manufacturer	Toshiba
File Size	359.53 KB
Description	8-Channel Analog Multiplexer/Demultiplexer
Datasheet	74HC4051FT-Toshiba.pdf

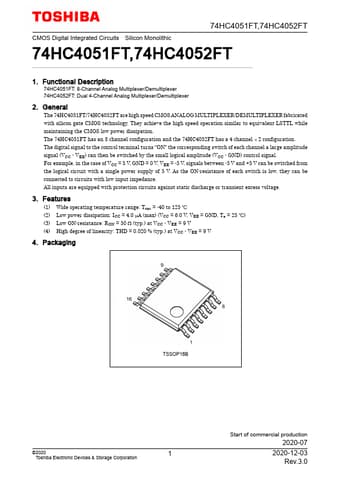

Additional preview pages of the 74HC4051FT datasheet.

Product details

Description

74HC4051FT: 8-Channel Analog Multiplexer/Demultiplexer 74HC4052FT: Dual 4-Channel Analog Multiplexer/Demultiplexer 2. General The 74HC4051FT/74HC4052FT are high speed CMOS ANALOG MULTIPLEXER/DEMULTIPLEXER fabricated with silicon gate CMOS technology.They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.The 74HC4051FT has an 8 channel configuration and the 74HC4052FT has a 4 channel × 2 configuration.The digital signal to the control

Features

(1) Wide operating temperature range: Topr = -40 to 125.
(2) Low power dissipation: ICC = 4.0 µA (max) (VCC = 6.0 V, VEE = GND, Ta = 25.
) (3) Low ON-resistance: RON = 50 Ω (typ. ) at VCC - VEE = 9 V (4) High degree of linearity: THD = 0.020 % (typ. ) at VCC - VEE = 9 V 4. Packaging TSSOP16B ©2020 1 Toshiba Electronic Devices & Storage Corporation Start of commercial production 2020-07 2020-12-03 Rev.3.0 5. Pin Assignment 74HC4051FT 74HC4051FT,74HC4052FT 74HC4052FT 6. IEC Logic Sy.
