74HC4053D

The 74HC4053D is Triple 2-Channel Analog Multiplexer/Demultiplexer designed by Toshiba.

Product Overview

Toshiba

Datasheet Details

Part number	74HC4053D
Manufacturer	Toshiba
File Size	251.91 KB
Description	Triple 2-Channel Analog Multiplexer/Demultiplexer
Datasheet	74HC4053D-Toshiba.pdf

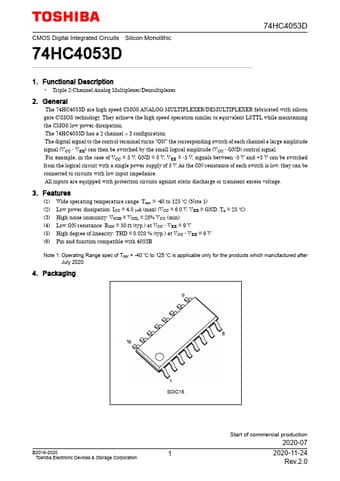

Additional preview pages of the 74HC4053D datasheet.

Product details

Description

Triple 2-Channel Analog Multiplexer/Demultiplexer 2. General The 74HC4053D are high speed CMOS ANALOG MULTIPLEXER/DEMULTIPLEXER fabricated with silicon gate C2MOS technology.They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.The 74HC4053D has a 2 channel × 3 configuration.The digital signal to the control terminal turns "ON" the corresponding switch of each channel a large amplitude signal (VCC - VEE) can then be switch

Features

(1) Wide operating temperature range: Topr = -40 to 125.
(Note 1) (2) Low power dissipation: ICC = 4.0 µA (max) (VCC = 6.0 V, VEE = GND, Ta = 25.
) (3) High noise immunity: VNIH = VNIL = 28% VCC (min) (4) Low ON-resistance: RON = 50 Ω (typ. ) at VCC - VEE = 9 V (5) High degree of linearity: THD = 0.020 % (typ. ) at VCC - VEE = 9 V (6) Pin and function compatible with 4053B Note 1: Operating Range spec of Topr = -40.
to 125.
is applicable only for the products which manufactured.
