AV16821DGG - 20-bit bus-interface D-type flip-flop; positive-edge trigger 3-State

Product Overview

NXP

Part number	AV16821DGG
Manufacturer	NXP
File Size	94.10 KB
Description	20-bit bus-interface D-type flip-flop; positive-edge trigger 3-State
Datasheet	AV16821DGG Datasheet

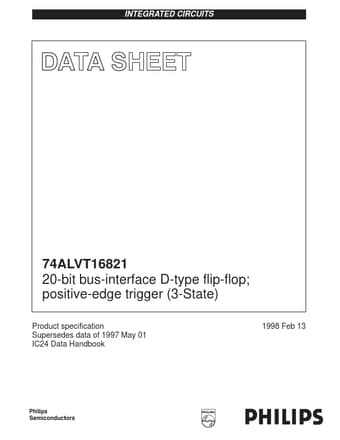

Additional preview pages of the AV16821DGG datasheet.

The 74ALVT16821 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

20-bit positive-edge triggered register.
5V I/O Compatible.
Multiple VCC and GND pins minimize switching noise.
Live insertion/extraction permitted.
Power-up reset.
Power-up 3-State.
Output capability: +64mA/-32mA.
Latch-up protection exceeds 500mA per Jedec Std 17.
ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model.
