AV16823DGG Datasheet - NXP

AV16823DGG 18-bit bus-interface D-type flip-flop with reset and enable 3-State

The 74ALVT16823 18-bit bus interface register is designed to eliminate the extra packages required to buffer existing registers and provide extra data width for wider data/address paths of buses carrying parity. The 74ALVT16823 has two 9-bit wide buffered registers with Clock Enable (nCE) and Master.

AV16823DGG Datasheet (99.78 KB)

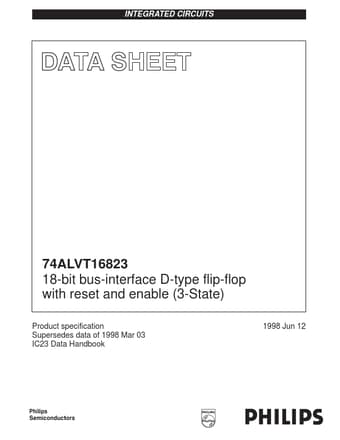

AV16823DGG Datasheet Preview — Preview of AV16823DGG PDF

Datasheet Details

Part number:

AV16823DGG

Manufacturer:

NXP ↗

File Size:

99.78 KB

Description:

18-bit bus-interface d-type flip-flop with reset and enable 3-state.
