AV16827DGG 2.5V/3.3V ALVT 20-bit buffer/line driver/ non-inverting 3-State

The 74ALVT16827 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. It is designed for VCC operation at 2.5V or 3.3V with I/O compatibility to 5V. The 74ALVT16827 20-bit buffers provide high performance bus interface buffering for w.

AV16827DGG Features

* Multiple VCC and GND pins minimize switching noise

* 5V I/O Compatible

* Live insertion/extraction permitted

* 3-State output buffers

* Power-up 3-State

* Output capability: +64mA/-32mA

* Latch-up protection exceeds 500mA per Jedec JC40.2 St

AV16827DGG Datasheet (82.49 KB)

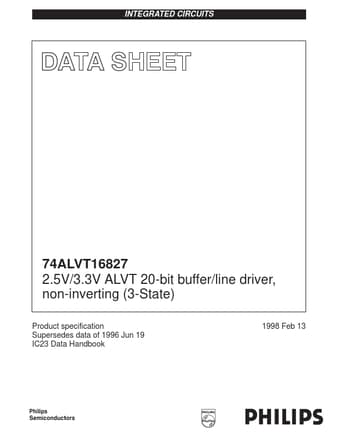

AV16827DGG Datasheet Preview — Preview of AV16827DGG PDF

Datasheet Details

Part number:

AV16827DGG

Manufacturer:

NXP ↗

File Size:

82.49 KB

Description:

2.5v/3.3v alvt 20-bit buffer/line driver/ non-inverting 3-state.
