AV16827DL - 2.5V/3.3V ALVT 20-bit buffer/line driver/ non-inverting 3-State

Product Overview

NXP

AV16827DL 2.5V/3.3V ALVT 20-bit buffer/line driver/ non-inverting 3-State by NXP - Datasheet Preview — Datasheet preview – AV16827DL

Datasheet Details

Part number	AV16827DL
Manufacturer	NXP
File Size	82.49 KB
Description	2.5V/3.3V ALVT 20-bit buffer/line driver/ non-inverting 3-State
Datasheet	AV16827DL Datasheet

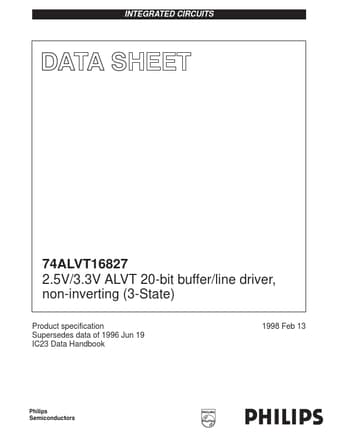

Additional preview pages of the AV16827DL datasheet.

Product details

Description

The 74ALVT16827 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. Bus hold data inputs eliminate the need for external pull-up resi

Features

Multiple VCC and GND pins minimize switching noise.
5V I/O Compatible.
Live insertion/extraction permitted.
3-State output buffers.
Power-up 3-State.
Output capability: +64mA/-32mA.
Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17.
ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model.
