AV16821DL

20-bit bus-interface D-type flip-flop; positive-edge trigger 3-State

AV16821DL Features

* 20-bit positive-edge triggered register

* 5V I/O Compatible

* Multiple VCC and GND pins minimize switching noise

* Live insertion/extraction permitted

* Power-up reset

* Power-up 3-State

* Output capability: +64mA/-32mA

* Latch-up pr

AV16821DL General Description

The 74ALVT16821 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. It is designed for VCC operation at 2.5V or 3.3V with I/O compatibility to 5V. The 74ALVT16821 has two 10-bit, edge triggered registers, with each register coupled .

AV16821DL Datasheet (94.10 KB)

Rating: 1 (2 votes)
Preview of AV16821DL PDF

Datasheet Details

Part number:

AV16821DL

Manufacturer:

NXP ↗

File Size:

94.10 KB

Description:

20-bit bus-interface d-type flip-flop; positive-edge trigger 3-state.

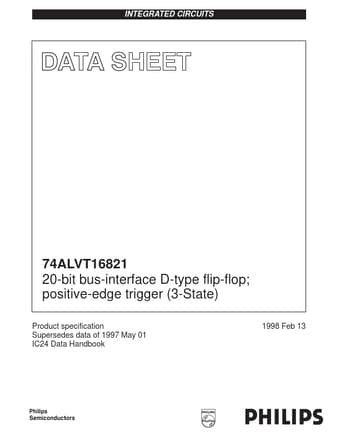

INTEGRATED CIRCUITS 74ALVT16821 20-bit bus-interface D-type flip-flop; positive-edge trigger (3-State) Product specification Supersedes data of 1997 .
