BA423A

AM band-switching diode

NXP

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Philips Semiconductors	BA423AL	SILICON, SIGNAL DIODE	Quest Components	988	715 units	$0.25	🛒 Buy Now

BA423A Datasheet (31.75 KB)

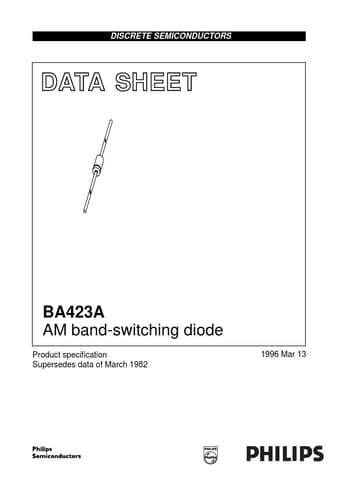

BA423A Datasheet Preview — Preview of BA423A PDF

Datasheet Details

Part number:

BA423A

Manufacturer:

NXP ↗

File Size:

31.75 KB

Description:

Am band-switching diode.
DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D050 BA423A AM band-switching diode Product speciﬁcation Supersedes data of March 1982 1996 Mar.

BA423A Features

* Continuous reverse voltage: max. 20 V

* Continuous forward current: max. 50 mA

* Low diode capacitance: max. 2.5 pF

* Low diode forward resistance: max. 1.2 Ω. APPLICATION

* Band switching in AM radio receivers. The diodes are type branded. BA423A DESCRIPT

BA423A General Description

Planar band-switching diode in a hermetically sealed glass SOD68 (DO-34) package. k handbook, halfpage a MAM156 Fig.1 Simplified outline (SOD68; DO-34) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL VR IF Tstg Tj continuous reverse voltage con.
