BA481

UHF mixer diode

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Suntsu Electronics Inc SXT32416BA48-16.000M Bristol Electronics 2761 0
$0

BA481 Datasheet (33.29 KB)

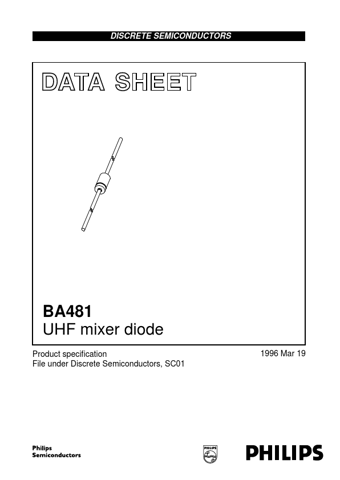

Preview of BA481 PDF

Datasheet Details

Part number:

BA481

Manufacturer:

NXP ↗

File Size:

33.29 KB

Description:

Uhf mixer diode.
DISCRETE SEMICONDUCTORS DATA SHEET ook, halfpage M3D050 BA481 UHF mixer diode Product specification File under Discrete Semiconductors, SC01 1996 Ma.

BA481 Features

* Low forward voltage

* Hermetically-sealed leaded glass package

* Low diode capacitance. APPLICATIONS

* UHF mixer

* Sampling circuits

* Modulators

* Phase detection. Cathode indicated by a grey band. k handbook, halfpage a BA481 DESCRIPTION P

BA481 General Description

Planar Schottky barrier diode encapsulated in a hermetically-sealed subminiature SOD68 (DO-34) glass package. The diode is suitable for mounting on a 2 E (5.08 mm) pitch. MAM193 Fig.1 Simplified outline (SOD68; DO-34), and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating Sys.
