BA482

Band-switching diodes

BA482 Features

* Continuous reverse voltage: max. 35 V

* Continuous forward current: max. 100 mA

* Low diode capacitance: max. 1.0 to 1.6 pF

* Low diode forward resistance: max. 0.7 to 1.2 Ω. The diodes are type branded. BA482; BA483; BA484 DESCRIPTION Planar high performance band-

BA482 General Description

Planar high performance band-switching diode in a hermetically sealed glass SOD68 (DO-34) package. k handbook, halfpage a MAM156 APPLICATION

* VHF television tuners. Fig.1 Simplified outline (SOD68; DO-34) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System.

BA482 Datasheet (33.64 KB)

Preview of BA482 PDF

Datasheet Details

Part number:

BA482

Manufacturer:

NXP ↗

File Size:

33.64 KB

Description:

Band-switching diodes.

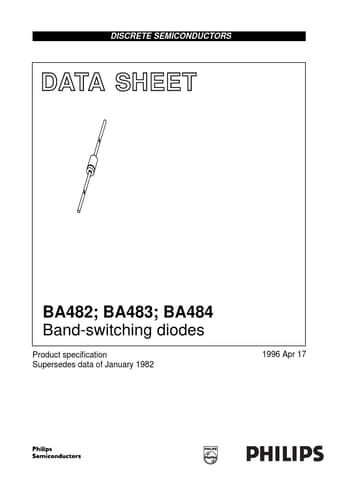

DISCRETE SEMICONDUCTORS DATA SHEET k, halfpage M3D050 BA482; BA483; BA484 Band-switching diodes Product specification Supersedes data of January 198.
